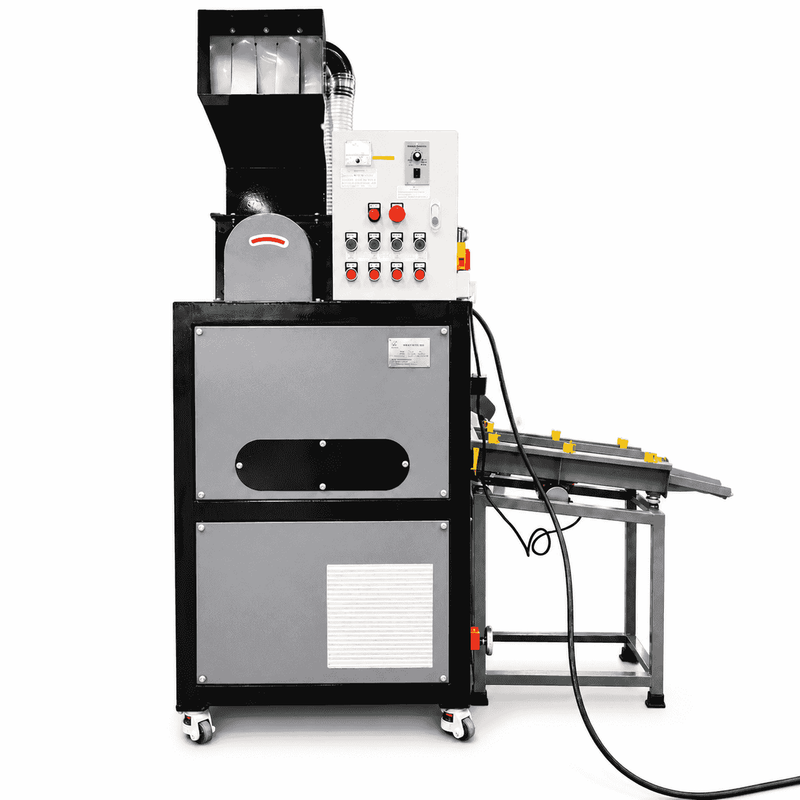

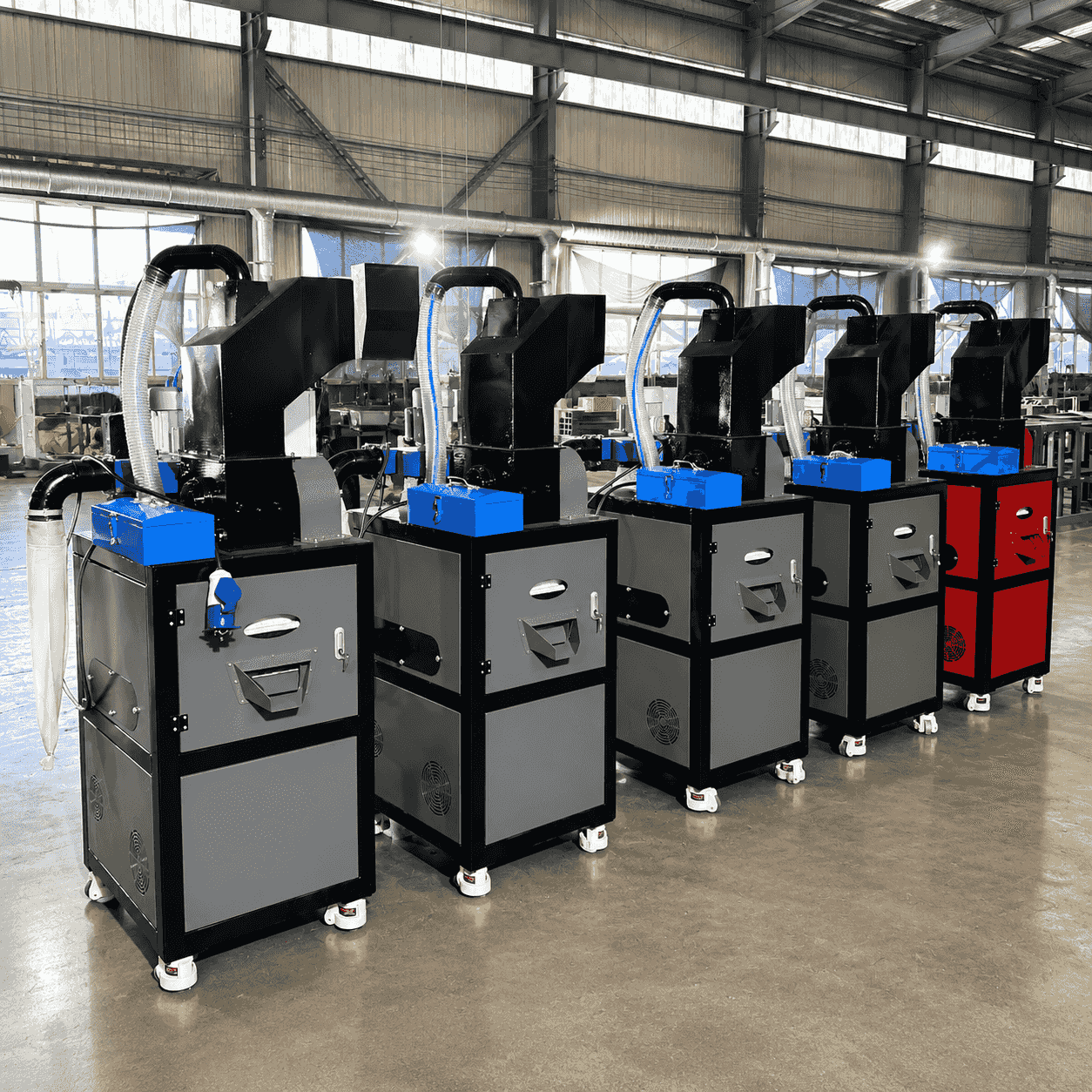

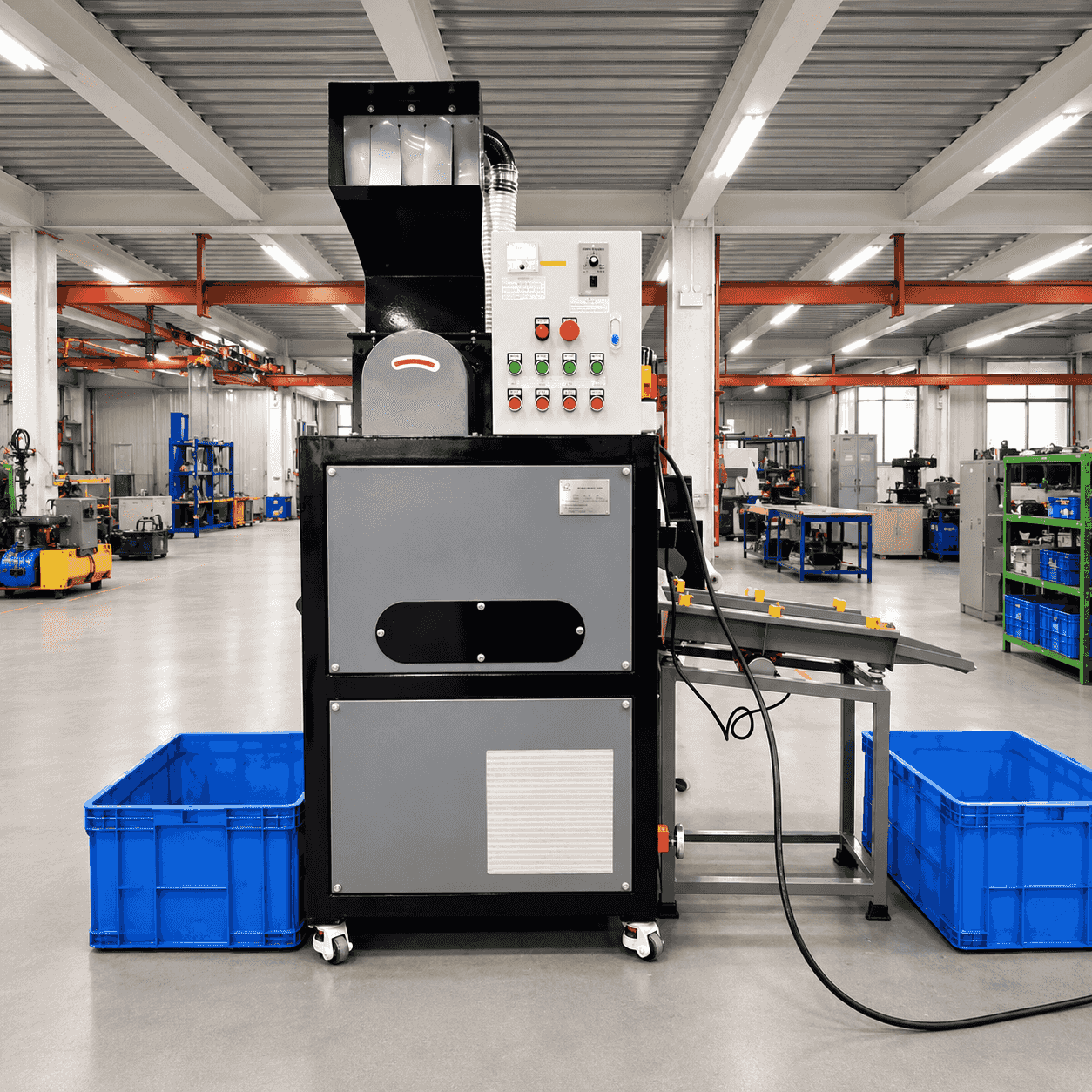

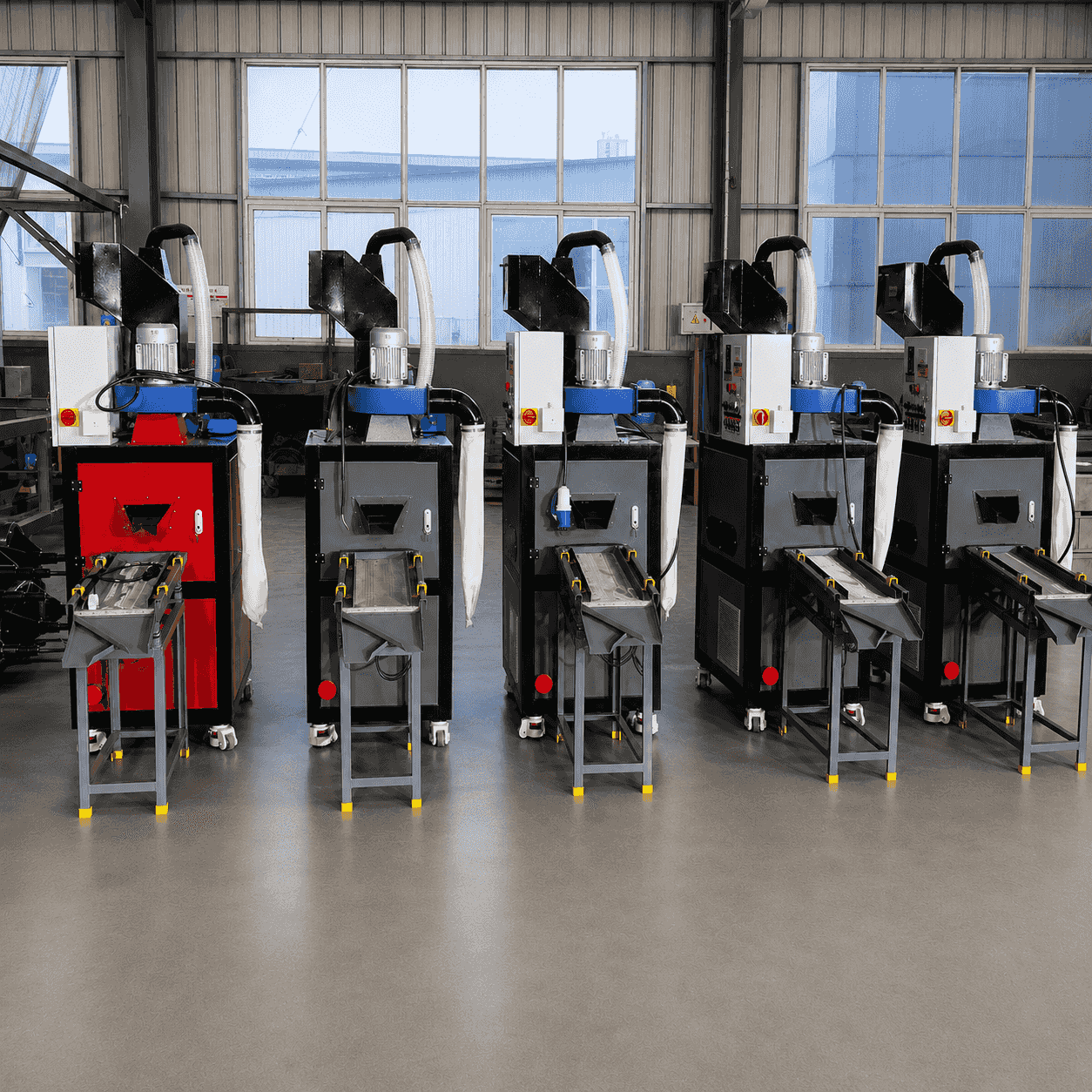

The 220V Copper Wire Granulator Machine is a compact, fully automatic recycling solution engineered by Henan Miracle Machinery for small businesses, home-based recyclers, scrap dealers, and workshops that need to recover pure copper from waste cables and wires. Running on a standard 220V single-phase power supply, this mini granulator delivers a processing capacity of 30–60 kg per hour, making it the ideal entry-level machine for anyone who wants to start a copper recovery business without investing in heavy three-phase industrial lines.
Unlike traditional manual cable stripping, which is slow, labor-intensive, and unable to handle thin or mixed wires, the uses a dry-type physical separation process. The machine crushes scrap copper cables into small particles and then separates the copper granules from the plastic insulation through a combination of crushing, vibration, and air-flow sorting. The entire process requires no water and no chemicals, producing clean copper granules with a purity of up to 99.9% and a sorting rate of 99%. This makes the recovered copper immediately ready for resale or remelting, maximizing the value of every kilogram of scrap you feed into the machine.
At the heart of the is a PLC automatic control system and a DC53 alloy-steel blade. The PLC controller manages crushing, separation, and feeding automatically, so a single operator can run the machine with minimal training. The DC53 blade is heat-treated for high hardness and wear resistance, ensuring stable cutting performance and a long service life even when processing tough, multi-strand, or oily cables. With a total installed power of only 4.5KW (main machine 3.9KW) and a footprint of just 0.56 × 0.85 × 1.55 m, the fits comfortably into a small workshop, garage, or warehouse corner while keeping electricity costs low.
