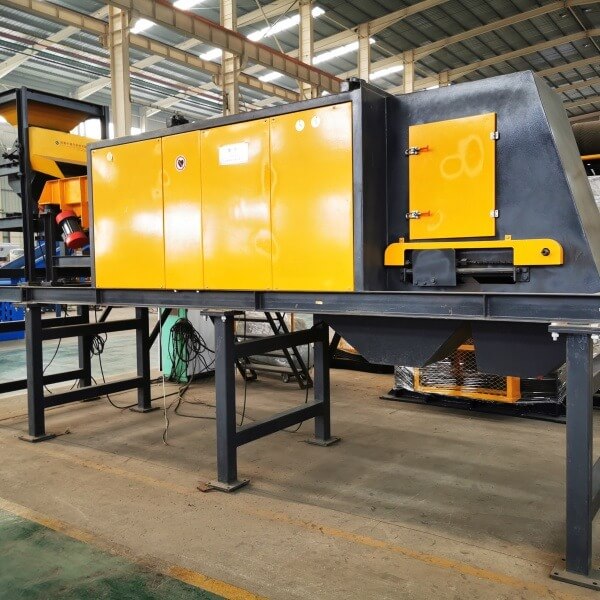

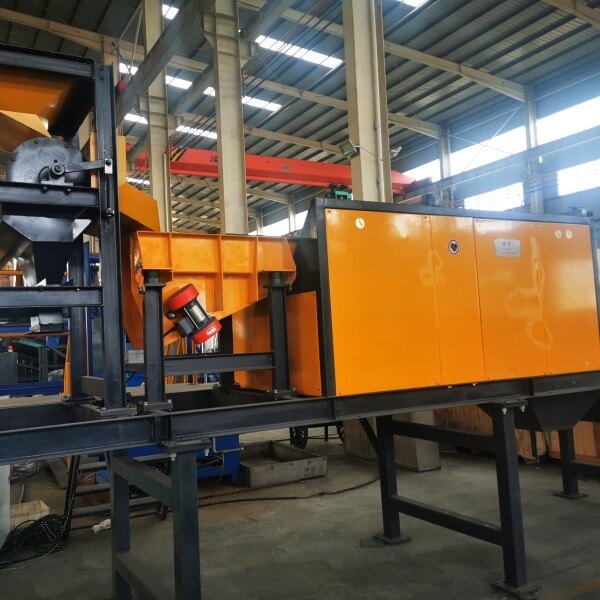

ECS Series 7kW Eddy Current Separator for Non-Ferrous Metal Sorting

• A high-speed rotating permanent magnet rotor (3,000–4,500 RPM) is positioned at the head pulley of the conveyor belt

• As non-ferrous metal particles pass over the rotor, the rapidly alternating magnetic field induces eddy currents

• These eddy currents generate a repulsive magnetic force on the metal particles — effectively "launching" them forward in a different trajectory from non-conductive materials

• A precisely positioned splitter plate divides the two trajectories: non-ferrous metals land in one bin, non-metals in another

• High-frequency rotor design (4,500 RPM) achieves effective separation on fine particles down to 3mm — significantly better than older low-frequency designs

• Adjustable splitter plate position allows fine-tuning of separation accuracy for each specific material type

• Eccentric magnetic pole configuration improves separation of flat aluminum can fragments that standard designs miss

• Stainless steel conveyor belt surface is non-conductive, preventing false-positive repulsion

• Variable belt speed (1.5–3.5 m/s) adapts to different material densities and throughput requirements

• Easy belt tension and rotor gap adjustment without tools

• Available in 500mm, 600mm, 800mm, and 1000mm belt widths for different line throughput requirements

•  Post-crusher aluminum can sorting (separating UBC chips from coating residue)

• Wire granulator line (separating copper granules from PVC insulation)

• Auto shredder residue (ASR) non-ferrous recovery

• WEEE line aluminum and copper recovery

• Mixed construction demolition waste metal recovery

Separation results depend on: particle size uniformity, material cleanliness, belt speed, and rotor frequency. We offer pre-sales material testing to confirm separation efficiency before purchase.

Payment: T/T, L/C. Logistics: FOB Chinese port. Warranty: 12 months. After-Sales: Replacement magnetic rotor assemblies kept in stock; rotor service life typically 5,000–8,000 hours.
