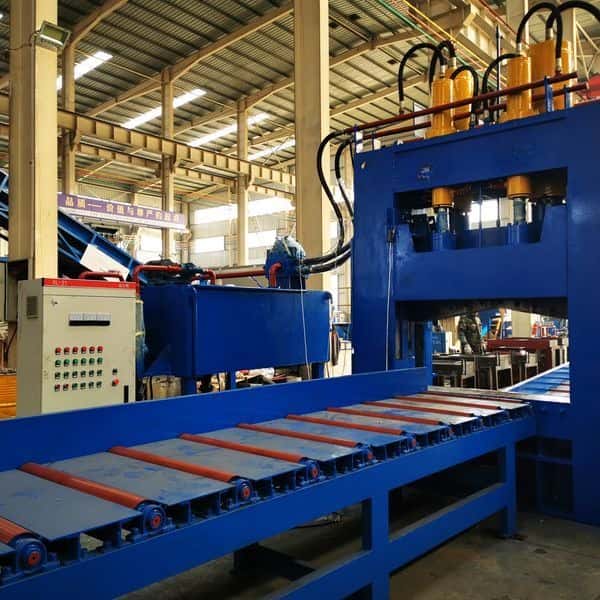

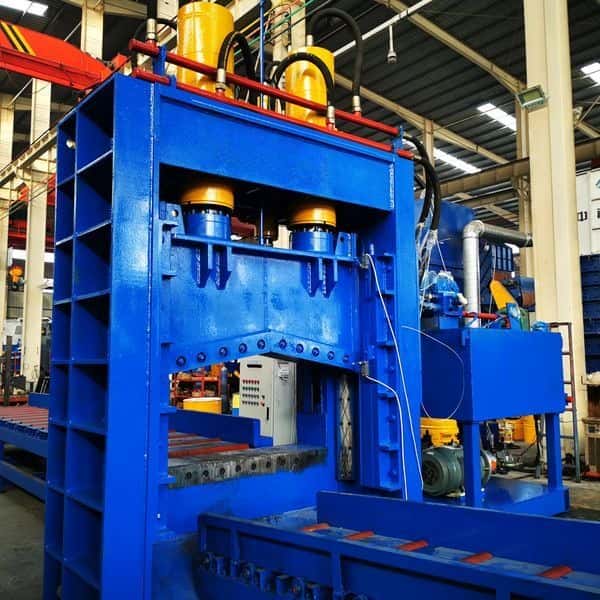

Heavy Duty Hydraulic Gantry Shear for Scrap Steel

• A high-pressure hydraulic system (31.5 MPa) drives a massive upper blade downward with 800 tons of force

• Material is placed on the lower fixed blade and held in position by a hydraulic clamp (optional, strongly recommended for thick material)

• The upper blade descends, shearing the material cleanly in a single stroke

• Hydraulic return raises the blade, ready for the next cut within 12–18 seconds

• 800-ton shearing force exceeds the tensile strength of any commercially available structural steel profile

• 1,600mm blade provides full-width cut across large material cross-sections without repositioning

• Cr12MoV upper and lower blades with 4 cutting edges per blade set — rotate to expose fresh edge when worn, maximizing blade utilization

• Pre-compression hydraulic clamp prevents material movement during cutting for accurate, clean shear faces

• Proportional hydraulic valve control for precise blade speed adjustment — slower speed for thick material, faster for thin

• All hydraulic components from internationally recognized suppliers (Bosch Rexroth, Parker, or equivalent)

• Heavy welded steel frame: stress-relieved after welding, machined mounting surfaces for blade precision alignment

• PLC control with stroke counter, hydraulic temperature monitor, and blade wear alert

• Safety: dual-hand control, light curtain, emergency stop on all four sides

Large scrap steel processing yards, EAF steel mill charge preparation, railway decommissioning, heavy industrial demolition scrap processing, ship breaking support equipment
