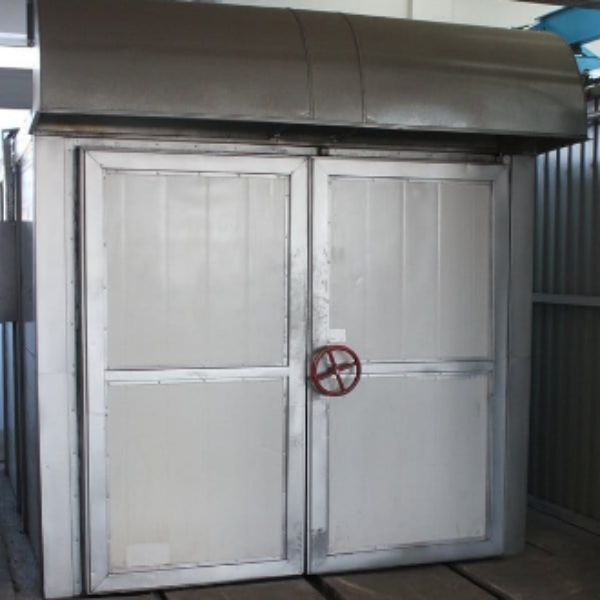

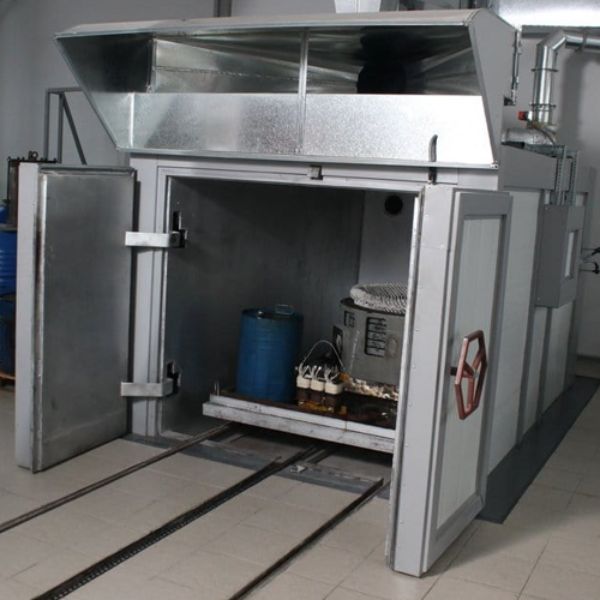

Induction Drying Furnace

1. Rapid induction heating, fast drying speed and high working efficiency, greatly shortening production cycle.

2. Uniform internal temperature distribution, realizing even drying without local overheating or damp residue.

3. Energy-saving heating design with low power consumption, effectively reducing long-term operating costs.

4. Fully enclosed heat insulation structure, low heat loss, safe operation and low noise.

5. Intelligent temperature and time control system, precise adjustment, simple operation and strong controllability.

6. Durable structural materials with corrosion resistance, easy maintenance and long service life.

Equipment specifications:

• Maximum heating temperature - 100 gr.С;

• Drying (heating) temperature - 50-100 gr.С;

• Type of heaters - copper winding;

• Emergency shutdown temperature - 110gr.С;

• Uniformity of temperature distribution - ± 5 gr.С;

• Supply voltage from AC mains ~ 380V;

• AC frequency - 50Hz;

• Number of phases - 3;

• Estimated power of the furnace - 52 kW ± 5%;

• Estimated average power consumption of the furnace - 22 kW ± 5%;

• The maximum mass of loaded products - 7400kg.

• height - 1500mm (from the supporting surface of the trolley to the ceiling of the working chamber);

• width - 2300mm;

• depth - 3500mm.

• Delivery set:

• Drying electric oven - 1 pc.;

• Electric power cabinet - 1 pc.;

• Electric control cabinet - 1 piece;

• Trolley - 1 piece;

• Ventilation box "umbrella" - 1 piece;

• A set of cable products (at least 10m) - 1 pc.

The system allows:

• regulation of the temperature process according to a given program, as well as in manual mode;

• select current temperature readings on the screen;

• select the graph of the temperature process for the entire period of the drying process;

• archive and view process data for at least 30 days;

• upload archived data to external electronic media (flash cards).

Furnace control system:

Do you need to save and view information: Yes Whether to provide a touch screen to control the process: Yes Availability of monitoring system with remote control access: No
