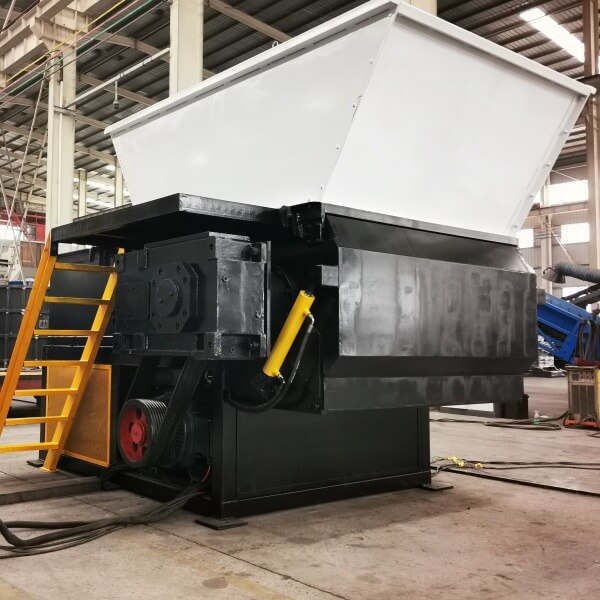

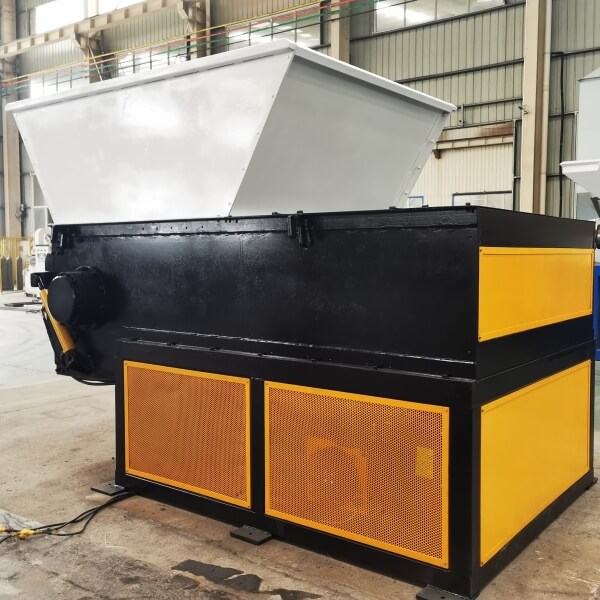

SS48150 90kW Single Shaft Shredder with Hydraulic Pusher Ram

• High-speed rotor (60–120 RPM) with fixed counter knives produces cleaner, more uniform output than slow-speed dual-shaft

• Screen basket below rotor controls output size precisely — swap screens to change output in 30 minutes

• Hydraulic pusher ram (30–100 kN) maintains steady material feed, preventing bridging in the hopper

• Bidirectional rotor motor: automatic reverse on jam detection clears blockages without manual intervention

• Large 1650 × 1500mm infeed opening handles bulky plastic-steel frames up to 2.5m length

• Quick-release screen for fast cleaning when switching material types

• Rotor knives: D2 tool steel, individually replaceable without removing the full rotor

• CE-compliant two-hand start control and interlocked access panels

plastic-steel composite processors, mixed light industrial waste facilities, and demolition contractors with sorted waste streams.

Compared to dual-shaft: Single shaft produces smaller, more consistent output but requires a screen; dual shaft produces larger pieces without a screen. Choose single shaft when downstream processes require controlled particle size (balers, granulators, extruders).
