Medium Frequency Gold Induction Melting Furnace

loading

Medium Frequency Gold Induction Melting Furnace Medium Frequency Gold Induction Melting Furnace
Medium Frequency Gold Induction Melting Furnace Medium Frequency Gold Induction Melting Furnace
Medium Frequency Gold Induction Melting Furnace Medium Frequency Gold Induction Melting Furnace
Medium Frequency Gold Induction Melting Furnace Medium Frequency Gold Induction Melting Furnace

loading

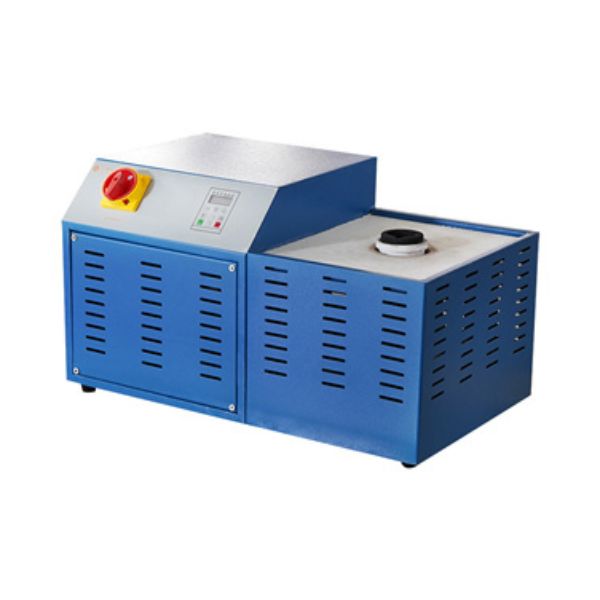

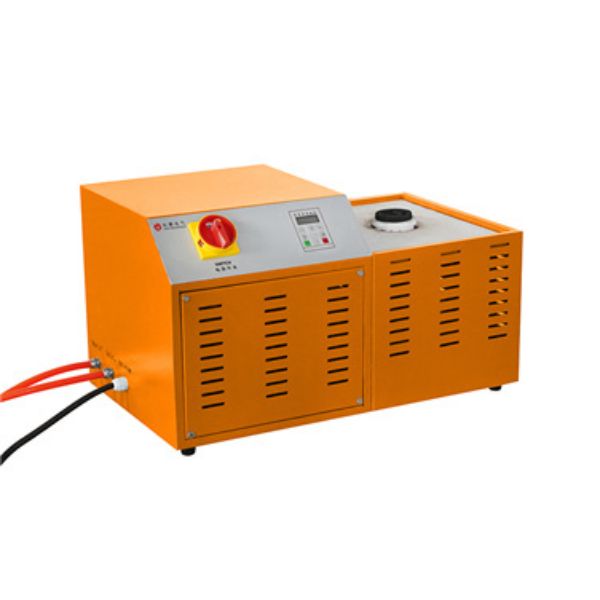

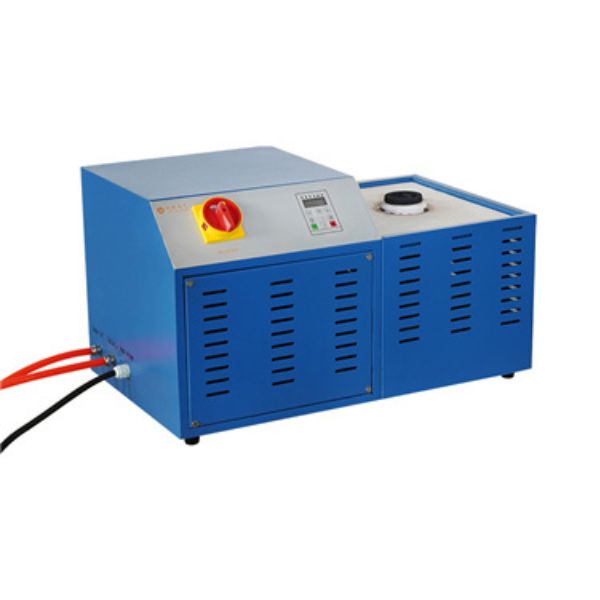

Medium Frequency Gold Induction Melting Furnace

Availability:
Crucible: Graphite crucible
Capacity: 1kg-10kg
Melting Time: 3mins-5mins
Meltable material: Gold, silver, platinum, and rhodium

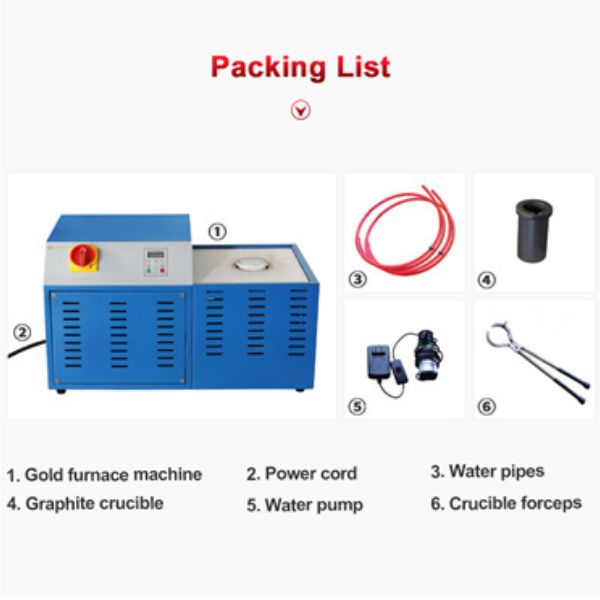

Configuration: Melting body, the crucible, water pipes, tongs, water pump
Application

Medium frequency gold induction melting furnace adopts advanced medium frequency induction heating technology, specially designed for melting gold, silver, platinum and other precious metals. It is widely used in jewelry processing factories, precious metal refineries, gold recycling plants, laboratory analysis and small-scale precious metal smelting industries. It is ideal for gold purification, gold bar casting, jewelry raw material melting and precious metal waste recycling and remelting.

Product Features

 Fast Heating & High Melting Efficiency:

Induction direct heating mode realizes rapid melting of gold materials in a short time, greatly shortening smelting cycle and improving daily production capacity.

High Purity Melting Effect:

Closed melting environment with low oxidation loss, which effectively protects gold activity, avoids impurity mixing and ensures high purity of molten gold liquid.

Precise Temperature Control:

Intelligent digital temperature adjustment system, accurate heating power and temperature control, stable melting state and consistent casting quality of finished gold products.

Compact Structure & Easy Operation:

Small footprint and integrated design, simple operation steps, easy to pour and take materials, suitable for workshop and laboratory limited space use.

Safe & Energy Saving:

Low energy consumption and low noise operation, with multiple safety protection functions, ensuring safe and stable long-term repeated smelting work.

Specification

Specification and Technical Parameter

Model

Voltage

Power

Melting Time

Furnace size

Packing size

Gross Weight

1KG

220V

3KW

3 Mins

650*350*350mm

720*420*410mm

20KG

2KG

220V

5KW

3 Mins

650*350*350mm

720*420*410mm

26KG

3KG

380V

7KW

3 Mins

870*355*400mm

940*425*470mm

32KG

5KG

380V

10KW

4 Mins

870*355*400mm

940*425*470mm

38KG

8KG

380V

15KW

4 Mins

850*807*345mm

920*877*415mm

48KG

10KG

380V

20KW

5 Min

850*807*345mm

920*877*415mm

58KG
