Miracle

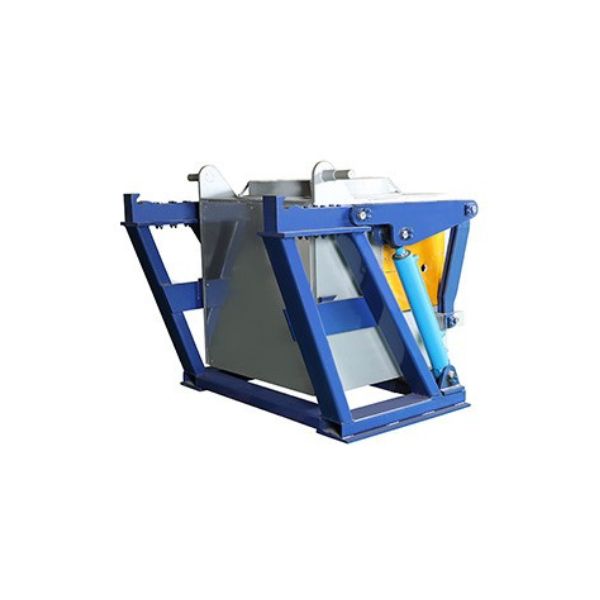

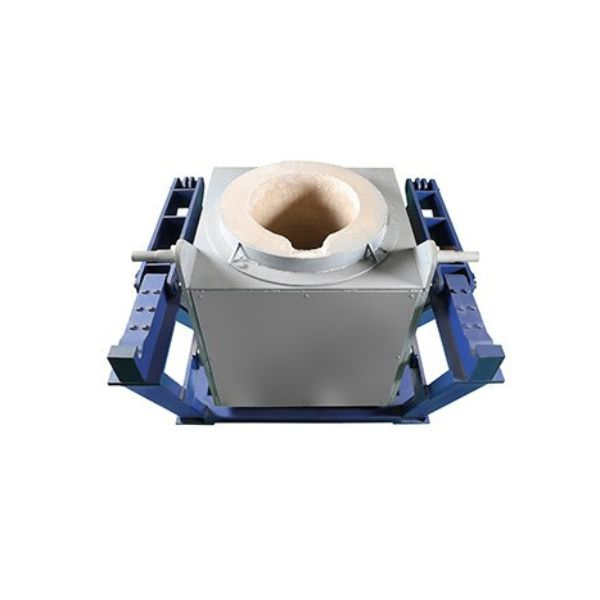

Stainless steel induction melting furnace adopts advanced medium-frequency induction heating technology, specially developed for smelting stainless steel, stainless steel scrap, chromium-nickel alloy and other high-hardness corrosion-resistant alloy materials.
It is widely used in metal recycling plants, industrial foundries, hardware casting factories, mechanical processing workshops, alloy material processing enterprises and precision casting factories. Suitable for mass production casting, waste stainless steel recycling and remelting, alloy material batching and trial smelting, meeting the high-temperature smelting needs of various stainless steel materials.
High Temperature Resistance:
Max 1750℃ high temperature, suitable for 201, 304, 316 stainless steel and various alloy smelting.
Energy Efficient:
Adopts IGBT module for high thermal efficiency, lower power consumption and production cost.
Uniform Melting:
Electromagnetic stirring ensures even molten steel composition and stable casting quality.
Eco-friendly & Safe:
Smokeless, low noise and low oxidation loss; multiple over-current, over-temperature and water shortage protection.
Easy Operation:

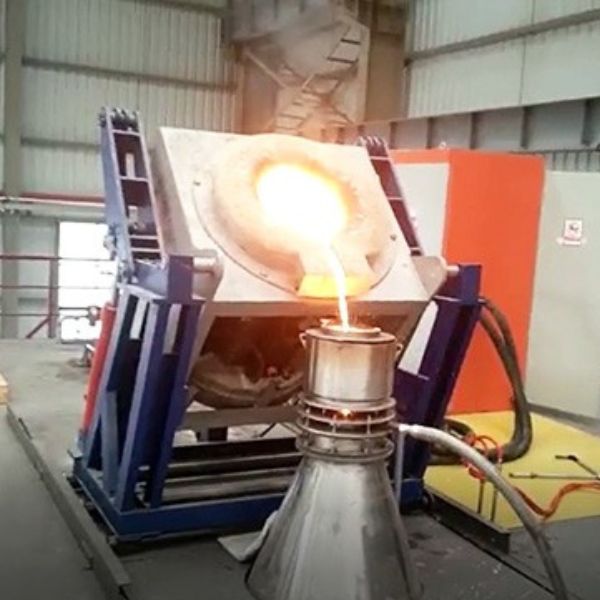

Manual or hydraulic tilting design for convenient pouring, with durable high-temperature refractory crucible.
Specification and Technical Parameter | |||||
Model | Power | Input Voltage | MF voltage | Associated Transformer | MF Frequency |
0.1T | 100kw | 3×380v | 750v | 125 | 2000Hz |
0.25T | 200kw | 3×380v | 750v | 250 | 2000Hz |
0.5T | 400kw | 3×380v | 1500v | 500 | 1500Hz |
1T | 850kw | 3×660v | 2400v | 900 | 1000Hz |
1.5T | 1000kw | 3×660v | 2500v | 1250 | 1000Hz |
2T | 1500kw | 3×660v | 2500v | 1600 | 800Hz |
5T | 3000KW | 6×950v | 3400V | 3300 | 800Hz |
10T | 6000kw | 6×1250v | 3700V | 7200 | 500Hz |
15T | 10000KW | 6×1250v | 4000V | 12500 | 300Hz |
