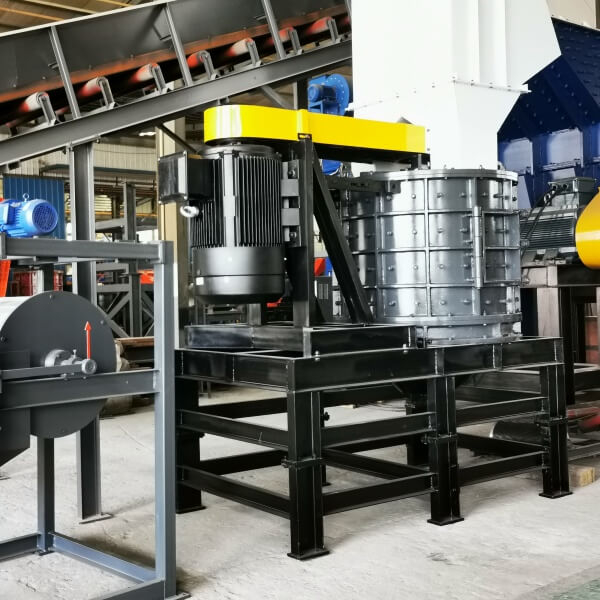

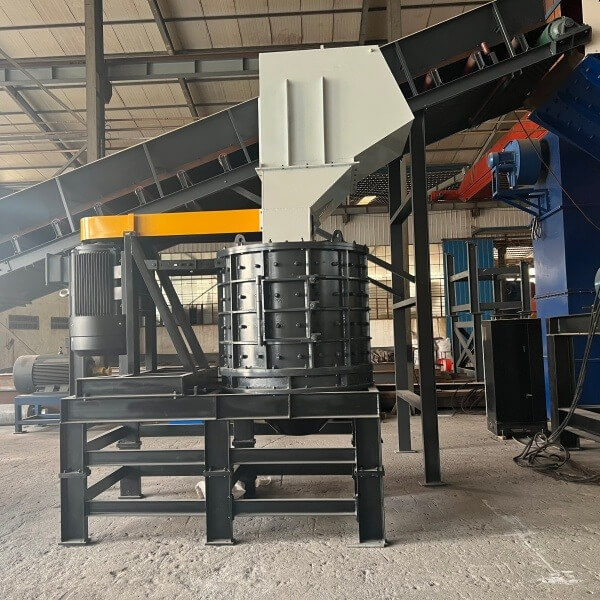

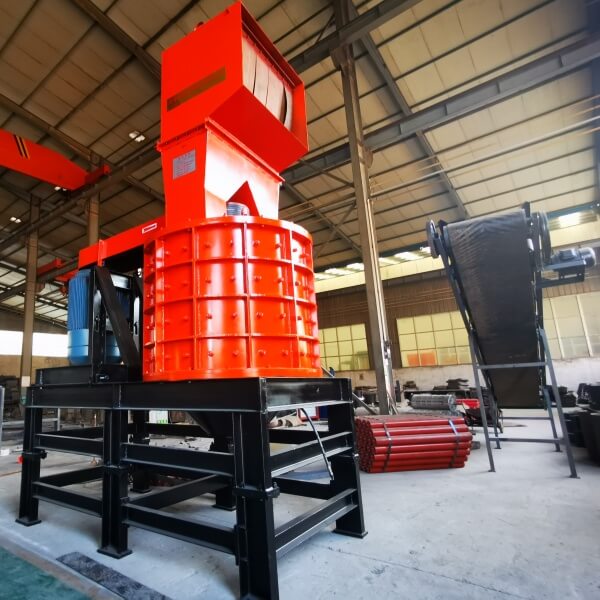

VSC1250 75-110kW Electric Motor Rotor Stator Crusher Machine

• Vertical shaft impact mechanism precisely fractures rotor/stator assemblies without destroying copper wire

• 270 × 400mm feed opening accepts motors up to 250kW frame size without pre-disassembly

• High-speed rotor (2400 RPM) creates centrifugal impact that cleanly separates windings from laminations

• Magnetic drum separator at discharge separates iron laminations from copper/aluminum

• Further ECS sorting (optional) recovers aluminum rotors separately from copper

• Compact footprint: 2.2 × 1.6 × 2.0m — container shippable, factory-floor ready

• Integrated dust suppression with suction port for workshop air quality compliance

At a throughput of 2 t/h for motors containing 20% copper, the VSC1250 recovers approximately 400 kg of copper per hour—a compelling economic proposition for motor scrap dealers and secondary copper processors

VSC1250 → Vibrating screen → Magnetic separator → ECS separator → Separated copper, aluminum, and iron streams
