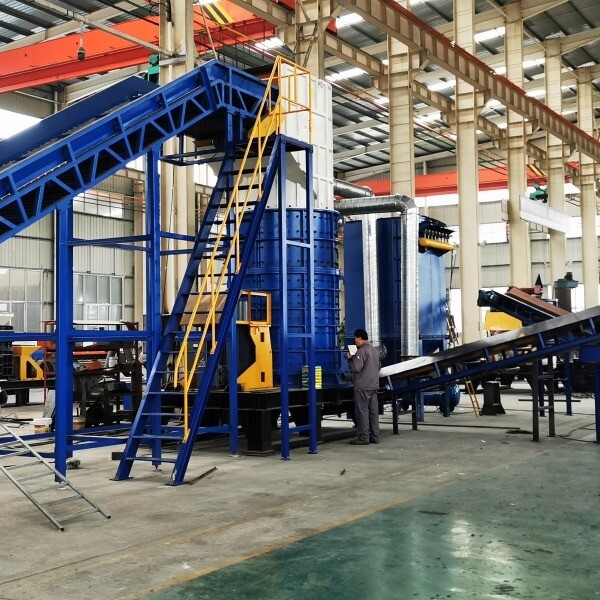

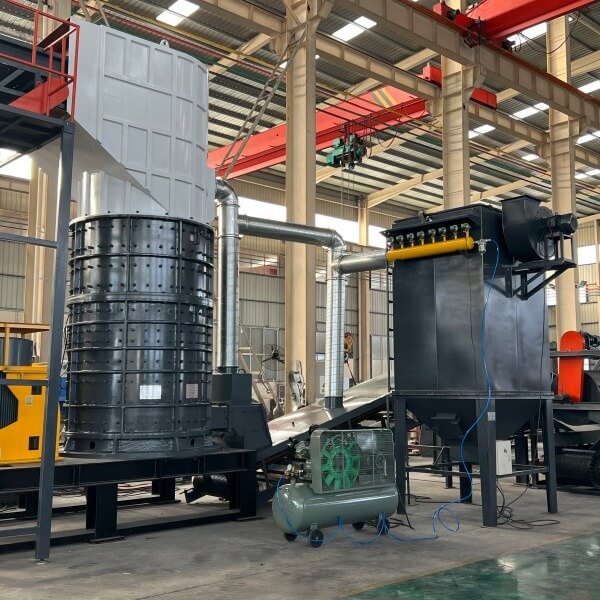

VSC41600 250-315kW Large UBC Aluminum Can Shredder Separator

loading

VSC41600 250-315kW Large UBC Aluminum Can Shredder Separator VSC41600 250-315kW Large UBC Aluminum Can Shredder Separator
VSC41600 250-315kW Large UBC Aluminum Can Shredder Separator VSC41600 250-315kW Large UBC Aluminum Can Shredder Separator

loading

VSC41600 250-315kW Large UBC Aluminum Can Shredder Separator

Availability:
Inquire
Motor Power: 250–315 kW
Feed Opening: 1100 × 1600 mm
Throughput: 5–15 t/h
Output Size: 20–80 mm
Applicable Materials: UBC bales, loose cans, steel/aluminum mixed cans, aluminum food tins
Separation MethodMagnetic + Air density + ECS (optional)

  • Miracle

Product Description

The VSC41600 is our flagship high-volume UBC (Used Beverage Can) processing system, designed for large-scale aluminum can recycling operations. Unlike the SC7080 which handles loose cans, the VSC41600 accepts both loose cans and compressed bales — making it ideal for sorting centers and secondary aluminum smelters receiving pre-baled UBC from collection networks.

Key Features

  • 1100 × 1600mm extra-wide feed opening directly accepts baled UBC without pre-opening

  • High-speed vertical-shaft impact crusher achieves fine, uniform chip output

  • Integrated air density separator and magnetic drum achieve >99% aluminum/steel separation

  • Output aluminum chips meet international re-melt grade specifications (ISRI 206 equivalent)

  • Fully enclosed crushing chamber with cyclone dust control

  • Automated feed via chain conveyor with variable-speed control

  • Full process line control via PLC touchscreen HMI

Complete Line Configuration

Can bales → VSC41600 crusher → Magnetic drum separator → Air density separator → ECS separator → Clean aluminum chips + steel fraction

RELATED PRODUCTS

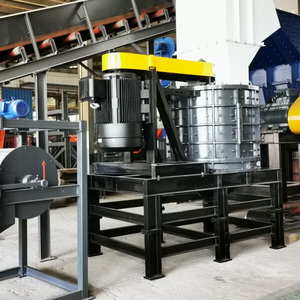

VSC1250 75-110kW Electric Motor Rotor Stator Crusher Machine
VSC1250 75-110kW Electric Motor Rotor Stator Crusher Machine

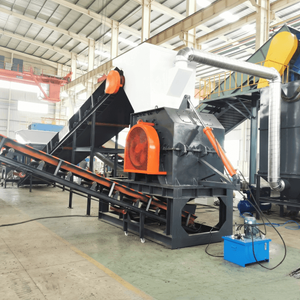

SC1280 75-132kW Metal Chips Swarf Crusher Granulator Machine
SC1280 75-132kW Metal Chips Swarf Crusher Granulator Machine

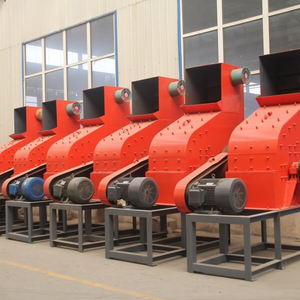

SC7080 30-55kW Small Aluminum Can Crusher Shredder Machine
SC7080 30-55kW Small Aluminum Can Crusher Shredder Machine

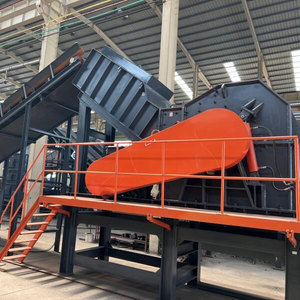

SC1214 200-315kW Aluminum Profile Crusher Scrap Metal Shredder
SC1214 200-315kW Aluminum Profile Crusher Scrap Metal Shredder

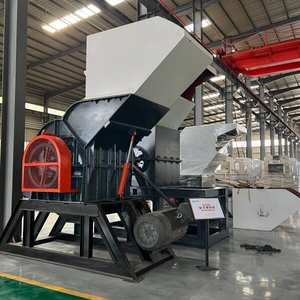

SC1210 110-200kW Scrap Aluminum Crusher Machine for Recycling
SC1210 110-200kW Scrap Aluminum Crusher Machine for Recycling

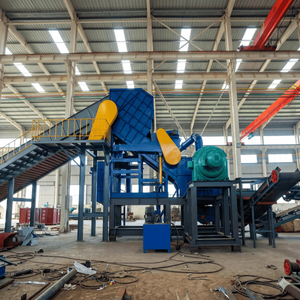

SCL600 1600kW Heavy Duty Scrap Steel Shredder for Metal Recycling
